Toyota Camry 2024 Fuse Replacement
Your power/USB socket not working? It's likely a broken fuse - an easy fix!
Follow the steps below to find and replace the fuse:
Step 1: Find the Fuse Box

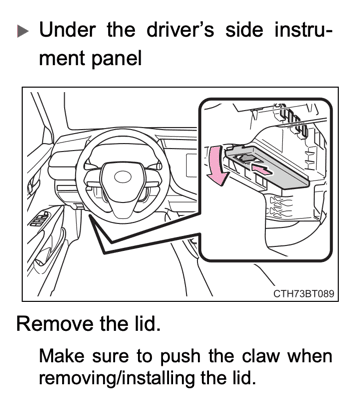

The fuse box is located under the dashboard on the driver's side.
Step 2: Identify the Corresponding Fuse
Below is a list of the fuses and their functions. The fuse for the A/C socket is typically labeled "ACC SOCKET" or similar. Look for "FR ACC SOCKET" and "CARGO ACC SOCKET" in the list below.

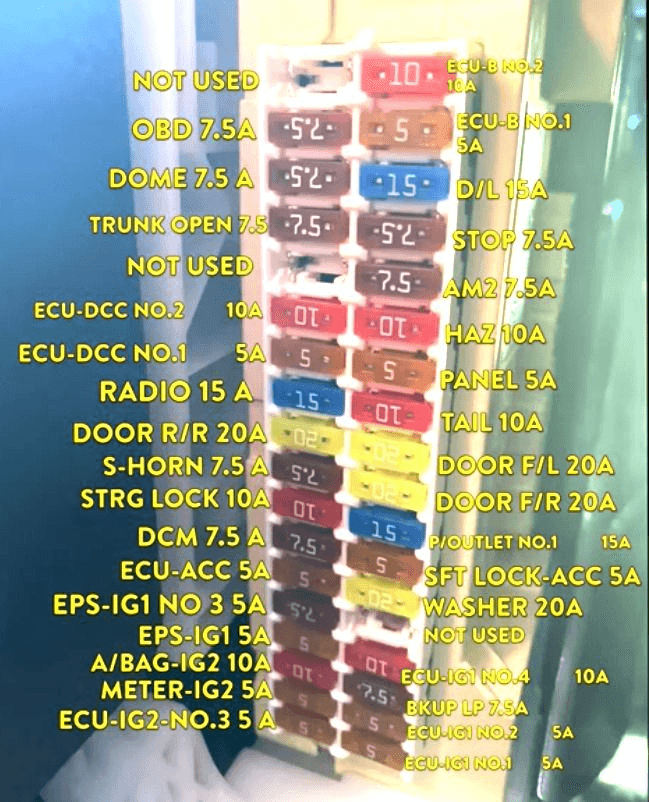

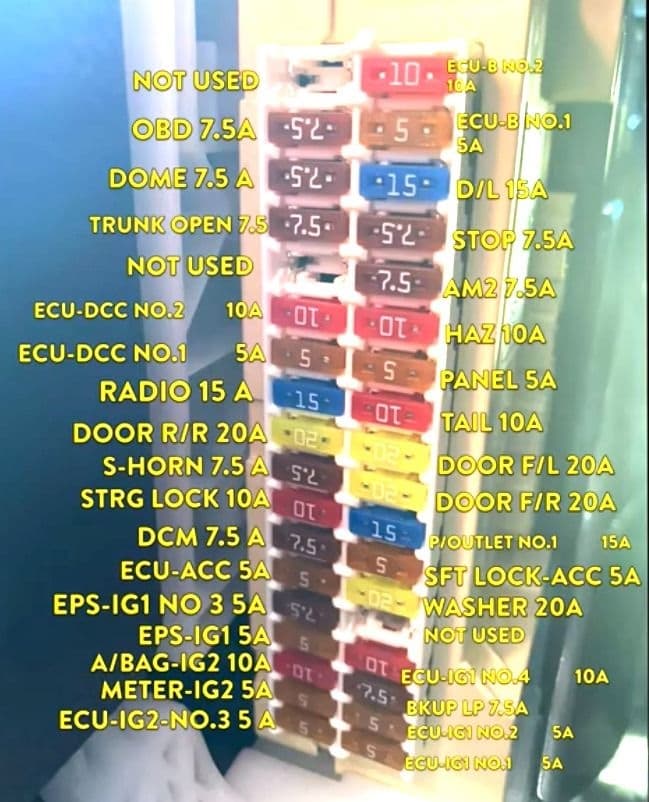

| Fuse # | Function | Amperage |
|---|---|---|
| 2 | (OBD) On-board diagnostics | 7.5 |
| 3 | (DOME) Dome light and interior light | 7.5 |
| 4 | (TRUNK OPEN) Power trunk lid opener | 7.5 |
| 6 | (ECU-DCC NO.2) Engine control unit | 10 |
| 7 | (ECU-DCC NO.1) Engine control unit | 5 |
| 8 | (RADIO) Radio and audio system | 15 |
| 9 | (DOOR R/R) Rear right door | 20 |
| 10 | (S-HORN) Horn / anti-theft deterrent | 7.5 |
| 11 | (STRG LOCK) Steering lock | 10 |
| 12 | (DCM) Data communication module (telematics system) | 7.5 |
| 13 | (ECU-ACC) Engine control unit | 5 |
| 14 | (ECU-IG1 NO.3) Engine control unit | 7.5 |
| 15 | (EPS-IG1) Electric power steering | 5 |
| 16 | (A/BAG-IG2) Airbag | 10 |
| 17 | (METER-IG2) Instrument cluster | 5 |
| 18 | (ECU-IG2 NO.3) Engine control unit | 5 |
| 19 | (ECU-B NO.2) Engine control unit | 10 |
| 20 | (ECU-B NO.1) Engine control unit | 5 |
| 21 | (D/L) Power door lock system | 15 |
| 22 | (STOP) Stop lights | 7.5 |
| 23 | (AM2) Starter system | 7.5 |
| 24 | (HAZ) Hazard light | 10 |
| 25 | (PANEL) Instrument panel lights | 5 |
| 26 | (TAIL) Tail lights | 10 |
| 27 | (DOOR F/L) Front left door lock | 20 |
| 28 | (DOOR F/R) Front right door | 20 |
| 29 | (P/OUTLET NO.1) Cigar lighter / power outlet | 15 |
| 30 | (SFT LOCK-ACC) AT Shift lock control system | 5 |
| 31 | (WASHER) Windshield washer | 20 |
| 33 | (ECU-IG1 NO.4) Engine control unit | 10 |
| 34 | (BKUP LP) Backup lights | 7.5 |
| 35 | (ECU-IG1 NO.2) Engine control unit | 5 |
| 36 | (ECU-IG1 NO.1) Engine control unit | 5 |
Step 3: Confirm its Location on the Fuse Box
The fuse box cover has a diagram that shows the location of each fuse. Match the number from the list above to the diagram on the cover.
Step 4: Check the Fuse
Use the plastic fuse puller, typically found in the fuse box, to remove the fuse. Hold it up to a light source. If the metal filament inside is broken or charred, the fuse is bad and needs to be replaced.
Step 5: How to Get a Replacement
You can buy a replacement fuse at any auto parts store. Make sure you match the **amperage (A)** and **physical size** of the fuse exactly. For example, if you need a 20A fuse, get a 20A fuse.
Step 6: Replace the Fuse
Gently press the new fuse into the empty slot. You should feel a slight click when it's securely in place. Test the A/C socket to confirm it's working again.
