Toyota Camry 2013 Fuse Replacement
Your power/USB socket not working? It's likely a broken fuse - an easy fix!
Follow the steps below to find and replace the fuse:
Step 1: Find the Fuse Box

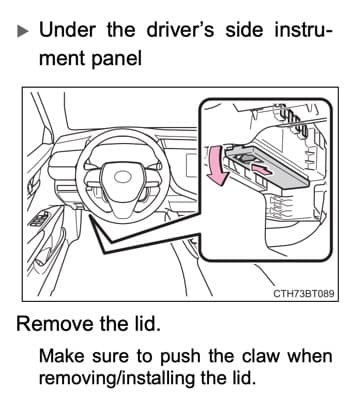

The fuse box is located under the dashboard on the driver's side.
Step 2: Identify the Corresponding Fuse
Below is a list of the fuses and their functions. The fuse for the A/C socket is typically labeled "ACC SOCKET" or similar. Look for "FR ACC SOCKET" and "CARGO ACC SOCKET" in the list below.
| Fuse # | Function | Amperage |
|---|---|---|
| 1 | (ECU-IG1 NO.2) Shift lock, seat heaters, smart key, audio, navigation, sunroof | 10 |
| 2 | (ECU-IG1 NO.1) Stability control, cooling fans, alternator, defoggers | 10 |
| 3 | (PANEL) Instrument panel, air conditioning, interior lights, audio | 10 |
| 4 | (TAIL) Tail lights, parking lights, fog lights | 15 |
| 5 | (EPS-IG1) Electric power steering | 7.5 |
| 6 | (ECU-IG1 NO.3) Blind Spot Monitor | 7.5 |
| 7 | (S/HTR&FAN F/L) Seat heaters | 10 |
| 9 | (WASHER) Windshield washer | 10 |
| 10 | (A/C-IG1) Air conditioning | 7.5 |
| 11 | (WIPER) Windshield wipers | 25 |
| 12 | (BKUP LP) Backup lights, audio, navigation | 7.5 |
| 13 | (DOOR NO.1) Power windows | 30 |
| 15 | (P/OUTLET RR) Power outlet | 20 |
| 16 | (SFT LOCKACC) Shift lock control | 5 |
| 17 | (DOOR R/R) Rear right power windows | 20 |
| 18 | (DOOR R/L) Rear left power windows | 20 |
| 19 | (OBD) On-board diagnostics | 10 |
| 20 | (ECU-B NO.2) Smart key, tire pressure warning | 10 |
| 21 | (DOOR NO.2) Power windows | 20 |
| 22 | (AM1) Fuel injection, starter system | 7.5 |
| 23 | (STOP) Stop lights, stability control | 7.5 |
| 25 | (AC-B) Air conditioning | 7.5 |
| 26 | (S/ROOF) Moon roof | 10 |
| 27 | (P/SEAT FR) Power seats | 30 |
| 29 | (D/L-AM1) Power door lock, trunk opener | 20 |
| 31 | (AB) Airbag system | 10 |
| 32 | (ECU-IG2 NO.1) Fuel injection system | 7.5 |
| 33 | (ECU-IG2 NO.2) Smart key, Blind Spot Monitor | 7.5 |
| 34 | (CIG&P/OUTLET) Power outlet | 15 |
| 35 | (ECU-ACC) Clock, mirrors, audio, navigation | 7.5 |
| 36 | (S/HTR&FAN F/R) Seat heaters | 10 |
| 37 | (S/HTR RR) No circuit | 10 |
Step 3: Confirm its Location on the Fuse Box

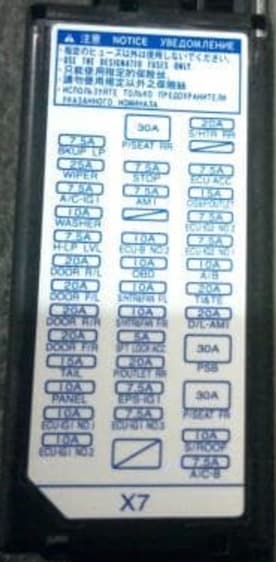

The fuse box cover has a diagram that shows the location of each fuse. Match the number from the list above to the diagram on the cover.

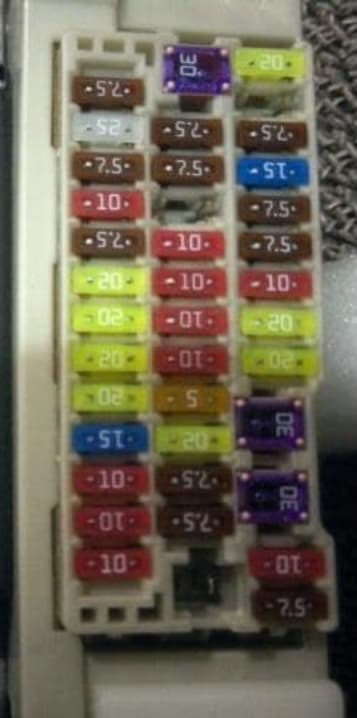

Step 4: Check the Fuse
Use the plastic fuse puller, typically found in the fuse box, to remove the fuse. Hold it up to a light source. If the metal filament inside is broken or charred, the fuse is bad and needs to be replaced.
Step 5: How to Get a Replacement
You can buy a replacement fuse at any auto parts store. Make sure you match the **amperage (A)** and **physical size** of the fuse exactly. For example, if you need a 20A fuse, get a 20A fuse.
Step 6: Replace the Fuse
Gently press the new fuse into the empty slot. You should feel a slight click when it's securely in place. Test the A/C socket to confirm it's working again.
