Nissan Murano 2023 Fuse Replacement
Your power/USB socket not working? It's likely a broken fuse - an easy fix!
Follow the steps below to find and replace the fuse:
Step 1: Find the Fuse Box

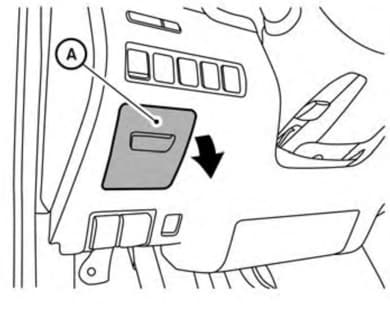

The fuse box is located under the dashboard on the driver's side.
Step 2: Identify the Corresponding Fuse
Below is a list of the fuses and their functions. The fuse for the A/C socket is typically labeled "ACC SOCKET" or similar. Look for "FR ACC SOCKET" and "CARGO ACC SOCKET" in the list below.
| Fuse # | Function | Amperage |
|---|---|---|
| 1 | (BLOWER MOTOR) AC blower motor | 15 |
| 2 | ||
| 3 | (POWER OUTLET) Auxiliary power outlet | 20 |
| 4 | (POWER OUTLET) Auxiliary power outlet | 20 |
| 5 | (ACC RELAY) Protects several accessory circuits | 10 |
| 6 | (HEATED MIRROR) Mirror heater | 10 |
| 7 | (RR DEF) Rear window defogger | 15 |
| 8 | (RR DEF) Rear window defogger | 15 |
| 9 | ELEC PARTS (BAT-1) | 10 |
| 10 | (ILLUMINATION) Illumination | 5 |
| 11 | (BLOWER MOTOR) AC blower motor | 15 |
| 12 | HEATED SEAT RR | 15 |
| 13 | (ELEC PARTS (IGN)) Protects several circuits | 10 |
| 14 | ||
| 15 | (METER (IGN)) Instrument cluster | 5 |
| 16 | (AIR BAG) Airbag | 10 |
| 17 | HEATED SEAT FR | 15 |
| 18 | (ROOM LAMP) Dome light and interior light | 10 |
| 19 | ||
| 20 | (DOOR LOCK FR) Power door lock system | 15 |
| 21 | (DOOR LOCK RR) Power door lock system | 15 |
| 22 | (RR WIPER) Rear wiper | 15 |
| 23 | (HEATED STRG) Heated steering wheel | 10 |
| 24 | (ELEC PARTS (ACC)) Protects several circuits | 10 |
| 25 | ||
| 26 | ELEC PARTS (BAT-2) | 10 |
| 27 | (STOP LAMP) Stop lights | 10 |
| 28 | EXTENDED STORAGE SW | |
| 29 | BOSE/RSE | 15 |
| 30 | (BOSE) Audio system | 15 |
| 31 | (METER (BAT)) Instrument cluster | 10 |
| 32 | ELEC PARTS (BAT CUT) | 5 |
| 33 | (AUDIO) Audio system | 20 |
| 34 | BCM SIGNAL | 5 |
Step 3: Confirm its Location on the Fuse Box

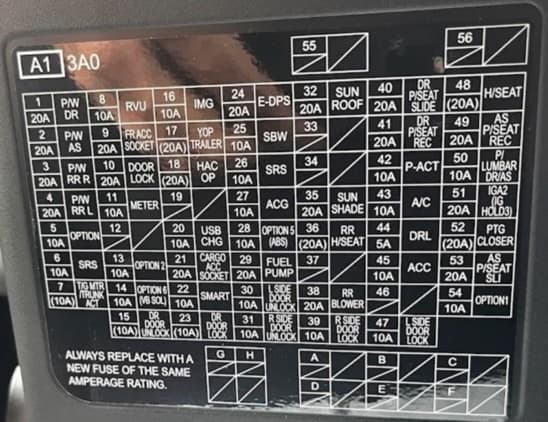

The fuse box cover has a diagram that shows the location of each fuse. Match the number from the list above to the diagram on the cover.
Step 4: Check the Fuse

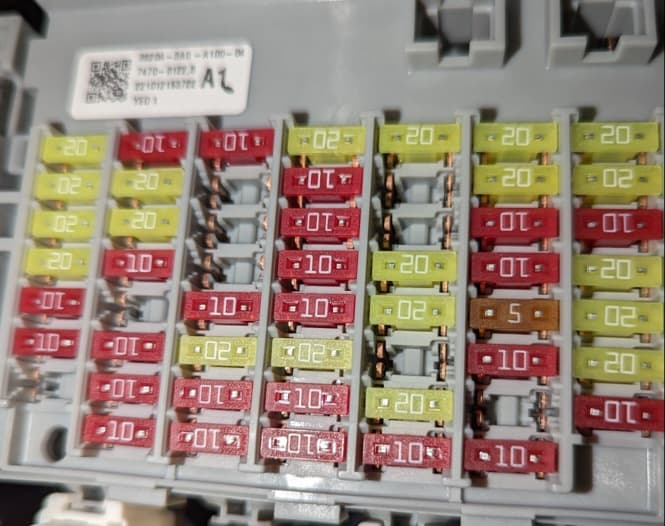

Use the plastic fuse puller, typically found in the fuse box, to remove the fuse. Hold it up to a light source. If the metal filament inside is broken or charred, the fuse is bad and needs to be replaced.
Step 5: How to Get a Replacement
You can buy a replacement fuse at any auto parts store. Make sure you match the **amperage (A)** and **physical size** of the fuse exactly. For example, if you need a 20A fuse, get a 20A fuse.
Step 6: Replace the Fuse
Gently press the new fuse into the empty slot. You should feel a slight click when it's securely in place. Test the A/C socket to confirm it's working again.
