Nissan Altima 2023 Fuse Replacement
Your power/USB socket not working? It's likely a broken fuse - an easy fix!
Follow the steps below to find and replace the fuse:
Step 1: Find the Fuse Box

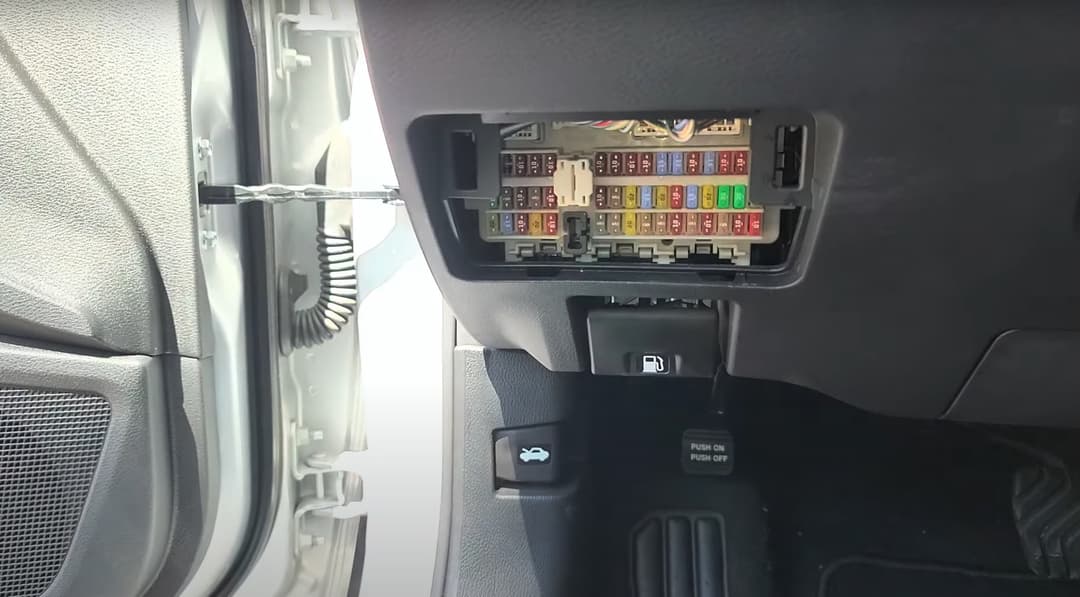

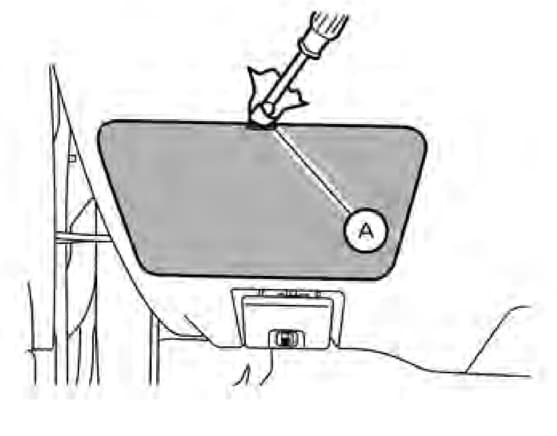

The fuse box is located under the dashboard on the driver's side.
Step 2: Identify the Corresponding Fuse
Below is a list of the fuses and their functions. The fuse for the A/C socket is typically labeled "ACC SOCKET" or similar. Look for "FR ACC SOCKET" and "CARGO ACC SOCKET" in the list below.
| Fuse # | Function | Amperage |
|---|---|---|
| 1 | (SPARE) Spare fuse | 20 |
| 2 | (USB CHARGE) USB charger | 15 |
| 3 | (ELEC PARTS (ACC)) Protects several circuits | 10 |
| 4 | (POWER SOCKET) Cigar lighter / power outlet | 20 |
| 5 | (VDC CONT) Vehicle dynamics control solenoid | 10 |
| 6 | (METER (IGN)) Instrument cluster | 5 |
| 7 | (SPARE) Spare fuse | 5 |
| 8 | (H/SEAT FR) Front seat heater | 20 |
| 9 | (STRG) Steering lock | 5 |
| 10 | E-PKB | 5 |
| 11 | (AIR BAG) Airbag | 10 |
| 12 | ELEC PARTS (IG SIG) | 5 |
| 13 | ELEC PARTS (IG POWER) | 10 |
| 14 | (EPS) Electric power steering | 5 |
| 15 | ATR CONT | 10 |
| 16 | (WASHER PUMP) Windshield washer | 10 |
| 17 | (RR DEF) Rear window defogger | 30 |
| 18 | (SPARE) Spare fuse | 5 |
| 19 | (HEATED MIRROR) Mirror heater | 10 |
| 20 | (BCM) Body control module | 5 |
| 21 | (METER (BAT)) Instrument cluster | 10 |
| 22 | (AUDIO-2) Audio system | 10 |
| 23 | (SPARE) Spare fuse | 5 |
| 24 | (AUDIO-1) Audio system | 20 |
| 25 | (SPARE) Spare fuse | 15 |
| 26 | (BOSE) Audio system | 20 |
| 27 | (SPARE) Spare fuse | 10 |
| 28 | (SPARE) Spare fuse | 15 |
| 29 | (SPARE) Spare fuse | 20 |
| 30 | (BLOWER MOTOR) AC blower motor | 30 |
| 31 | (SPARE) Spare fuse | 30 |
| 32 | (ILL) Illumination | 5 |
| 33 | (HEATED STRG) Heated steering wheel | 10 |
| 34 | ||
| 35 | (BCM) Body control module | 10 |
| 36 | 4WD SOL | 10 |
| 37 | 4WD CONT | 10 |
| 38 | ELECT PKB | 10 |
| 39 | ELEC B (BAT) | 10 |
| 40 | GATEWAY | 10 |
| 41 | (TCU) Transmission control unit | 10 |
| 42 | (DOOR LOCK RR) Power door lock system | 15 |
| 43 | (DOOR LOCK FR) Power door lock system | 15 |
| 44 | (TURN SIGNAL) Turn signal | 10 |
| 45 | (RR FOG) Rear fog lights | 15 |
| 46 | (ROOM LAMP) Dome light and interior light | 10 |
| 47 | (STOP LAMP-2) Stop lights | 10 |
| 48 | (STOP LAMP-1) Stop lights | 5 |
Step 3: Confirm its Location on the Fuse Box

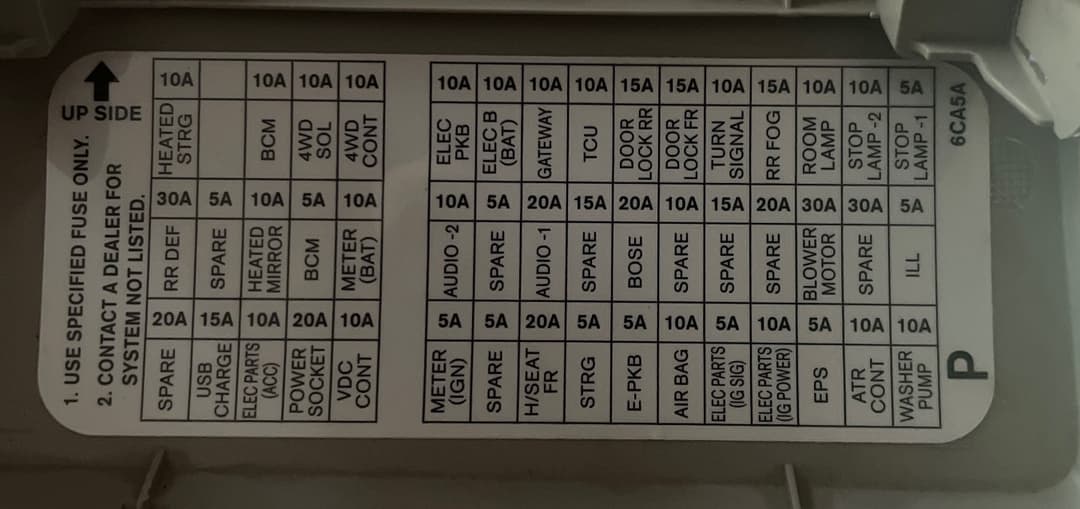

The fuse box cover has a diagram that shows the location of each fuse. Match the number from the list above to the diagram on the cover.
Step 4: Check the Fuse
Use the plastic fuse puller, typically found in the fuse box, to remove the fuse. Hold it up to a light source. If the metal filament inside is broken or charred, the fuse is bad and needs to be replaced.
Step 5: How to Get a Replacement
You can buy a replacement fuse at any auto parts store. Make sure you match the **amperage (A)** and **physical size** of the fuse exactly. For example, if you need a 20A fuse, get a 20A fuse.
Step 6: Replace the Fuse
Gently press the new fuse into the empty slot. You should feel a slight click when it's securely in place. Test the A/C socket to confirm it's working again.
