Honda CRV 2024 Fuse Replacement
Your power/USB socket not working? It's likely a broken fuse - an easy fix!
Follow the steps below to find and replace the fuse:
Step 1: Find the Fuse Box

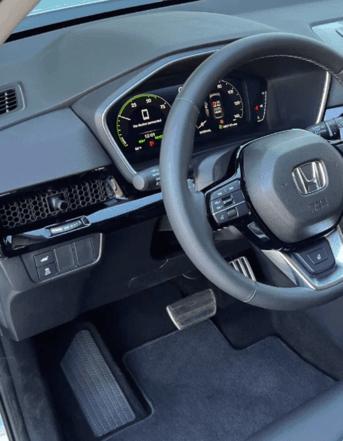

The fuse box is located under the dashboard on the driver's side.
Step 2: Identify the Corresponding Fuse
Below is a list of the fuses and their functions. The fuse for the A/C socket is typically labeled "ACC SOCKET" or similar. Look for "FR ACC SOCKET" and "CARGO ACC SOCKET" in the list below.
| Fuse # | Function | Amperage |
|---|---|---|
| 1 | Power Window - Driver | 20 |
| 2 | Power Window - Assistant (Passenger) | 20 |
| 3 | Power Window - Rear Right | 20 |
| 4 | Power Window - Rear Left | 20 |
| 5 | OPTION | 10 |
| 6 | Supplemental Restraint System (Airbags) | 10 |
| 7 | Tailgate Motor / Trunk Actuator | 10 |
| 8 | RVU | 10 |
| 9 | Front Accessory Socket | 20 |
| 10 | All Door Locks | 20 |
| 11 | Instrument Cluster / Meter | 10 |
| 12 | Option 3 (Starter Cut) | 10 |
| 13 | Option 2 | 10 |
| 14 | Option 6 (Variable Blocker Solenoid) | 10 |
| 15 | Driver Door Unlock | 10 |
| 16 | Infotainment / Image Unit | 10 |
| 17 | Trailer | 20 |
| 18 | Honda Auto Clutch - Optional | 20 |
| 19 | ||
| 20 | USB Charging | 10 |
| 21 | Cargo Accessory Socket | 20 |
| 22 | Smart Entry System | 10 |
| 23 | Driver Door Lock | 10 |
| 24 | Electric Differential Power Supply | 20 |
| 25 | ||
| 26 | Supplemental Restraint System (Airbags) | 10 |
| 27 | Alternating Current Generator (Alternator) | 10 |
| 28 | Option 5 (Anti-lock Braking System) | 10 |
| 29 | Fuel Pump | 20 |
| 30 | Left Side Door Unlock | 10 |
| 31 | Right Side Door Unlock | 10 |
| 32 | Sun Roof | 20 |
| 33 | ||
| 34 | ||
| 35 | Sun Shade | 20 |
| 36 | Rear Heated Seat | 20 |
| 37 | ||
| 38 | Rear Blower Motor | 20 |
| 39 | Right Side Door Lock | 10 |
| 40 | Driver Power Seat - Slide | 20 |
| 41 | Driver Power Seat - Recline | 20 |
| 42 | Ethanol Sensor / Component | 5 |
| 43 | Air Conditioning | 10 |
| 44 | Daytime Running Lights | 5 |
| 45 | Accessory | 10 |
| 46 | ||
| 47 | Left Side Door Lock | 10 |
| 48 | Heated Seat | 20 |
| 49 | Assistant (Passenger) Power Seat - Recline | 20 |
| 50 | Power Lumbar - Driver/Assistant | 10 |
| 51 | ||
| 52 | Power Tailgate Closer | 20 |
| 53 | Assistant (Passenger) Power Seat - Slide | 20 |
| 54 | Option 1 | 10 |
| 55 | ||
| 56 |
Step 3: Confirm its Location on the Fuse Box

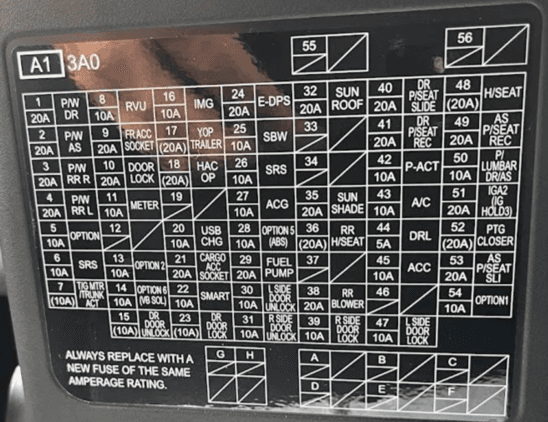

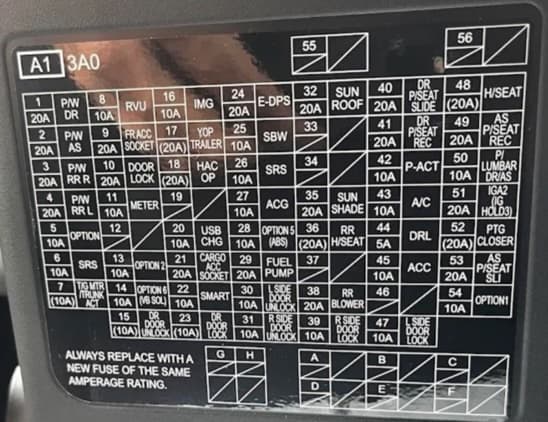

The fuse box cover has a diagram that shows the location of each fuse. Match the number from the list above to the diagram on the cover.
Step 4: Check the Fuse

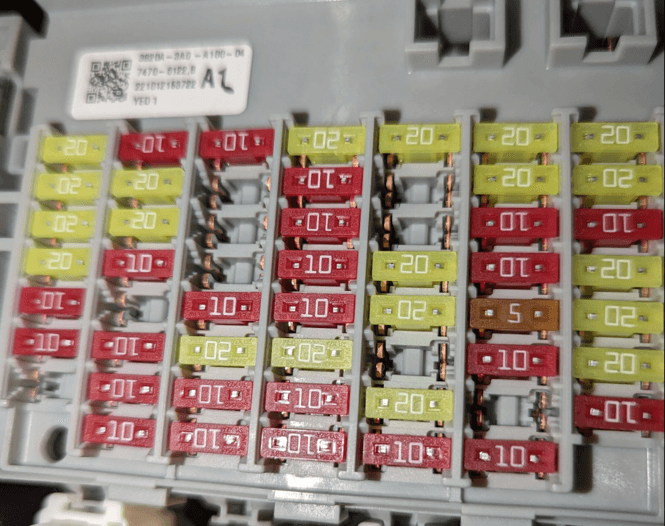

Use the plastic fuse puller, typically found in the fuse box, to remove the fuse. Hold it up to a light source. If the metal filament inside is broken or charred, the fuse is bad and needs to be replaced.
Step 5: How to Get a Replacement
You can buy a replacement fuse at any auto parts store. Make sure you match the **amperage (A)** and **physical size** of the fuse exactly. For example, if you need a 20A fuse, get a 20A fuse.
Step 6: Replace the Fuse
Gently press the new fuse into the empty slot. You should feel a slight click when it's securely in place. Test the A/C socket to confirm it's working again.
